Three Phase Hybrid ESS Inverter

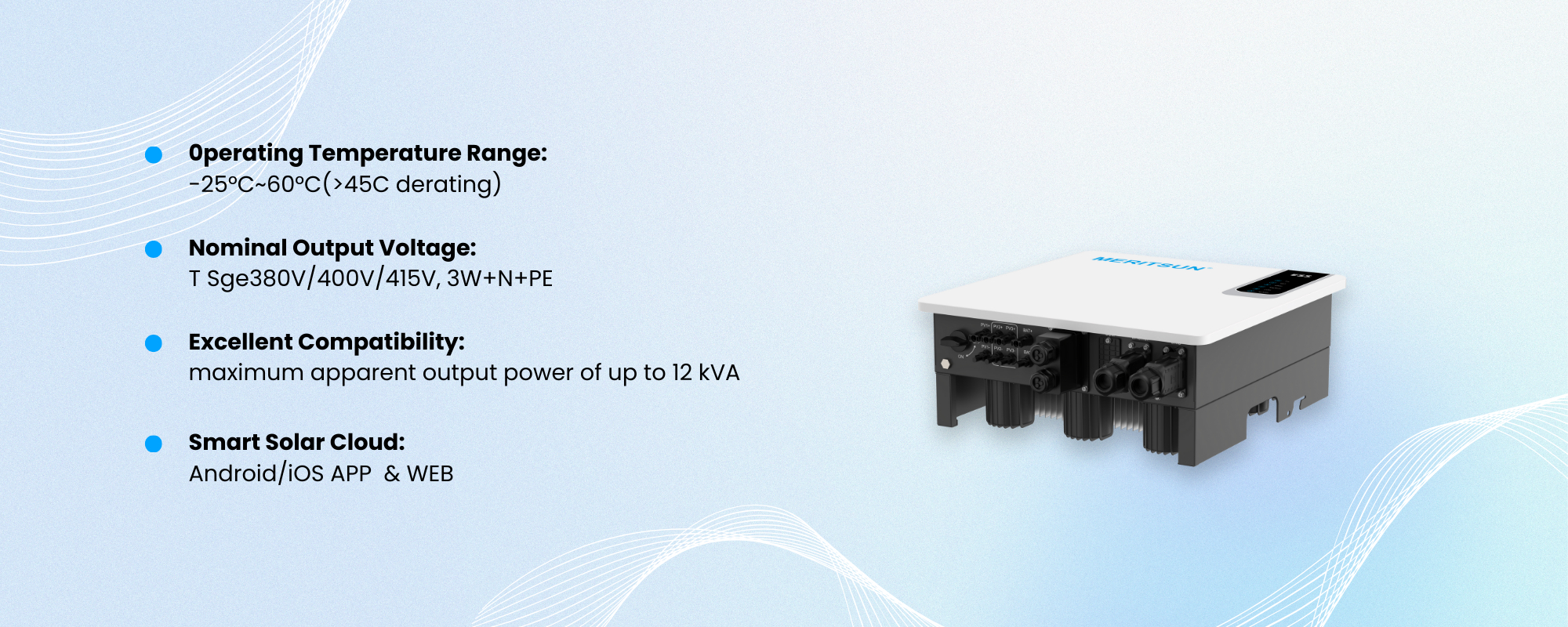

●The MeritSun Three Phase Hybrid ESS Inverter epitomizes solar energy innovation and is designed for exceptional efficiency. Its advanced technology is seamlessly integrated into a compact, lightweight inverter, simplifying installation and ensuring easy portability. Recognized with international certifications like VDE-AR-N4105, IEC, AS, C10/11, EN 61000, CEI, etc. it attests to its top-quality standards. The IP65-rated design provides unmatched protection for operational safety. Beyond being an inverter, it represents a reliable energy solution with a 5-year warranty, offering users long-term assurance. Opt for MeritSun for excellence, and reliability, and step into the forefront of the new era in energy solutions.

Get quotation

Type of Business *

Distributor Contractor Engineering Individual

Expected Battery Capacity（kWh） :

System Load Power（W） :

Pure Battery System Integrated Inverter System

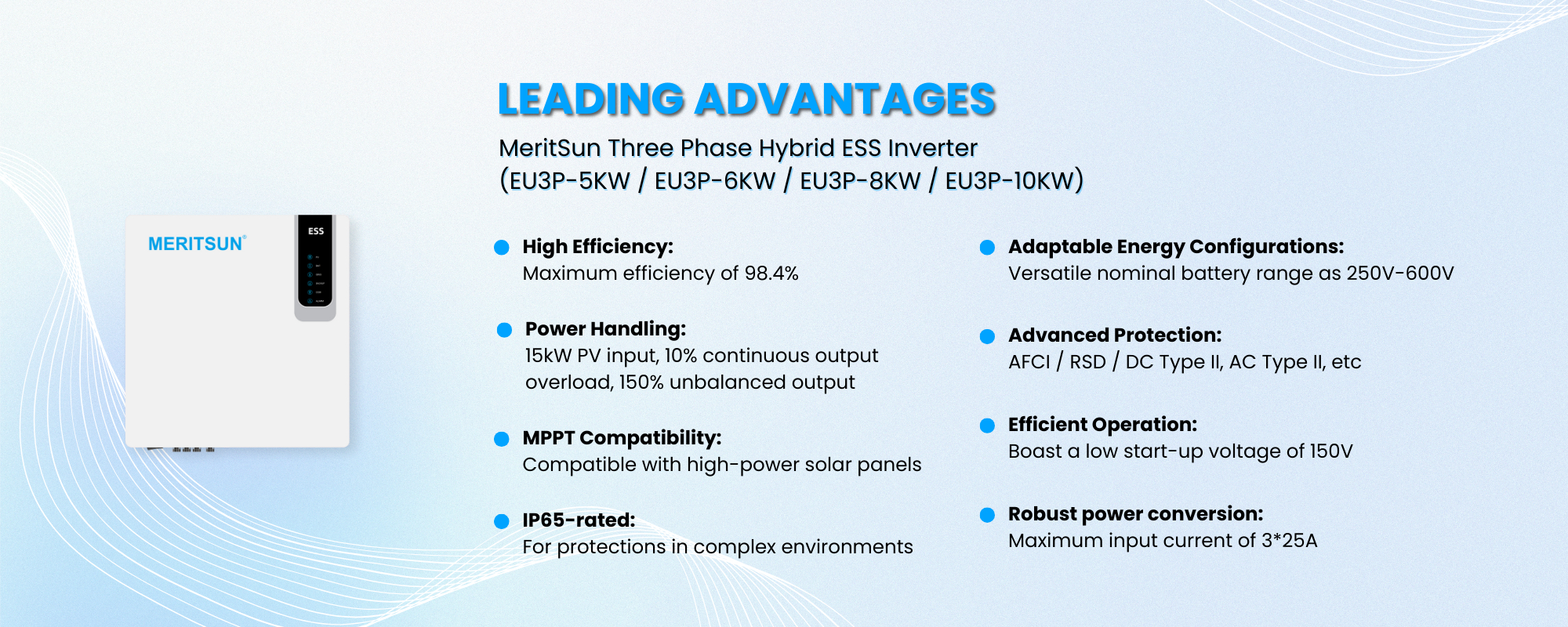

FEATURES

High-Performance, Powerful Design, and Intelligent Maintenance

● High Performance: The Inverter boasts a peak efficiency of 98.4% and a battery efficiency of 98%, setting a new benchmark in solar energy reliability.

● Powerful Design: Supports up to 15kW photovoltaic input power, handles 10% output overload, and offers 150% unbalanced output capability.

Reliability: Components from respected brands, IP65 protection, and built-in safety features like AFCI and RSD.

● Intelligent Maintenance: User-friendly app for easy setup, 24/7 remote monitoring, flexible configuration, and seamless upgrades.

● Advanced Energy Management: Various working modes for flexibility, allowing users to tailor settings for optimal solar energy system performance and efficiency.

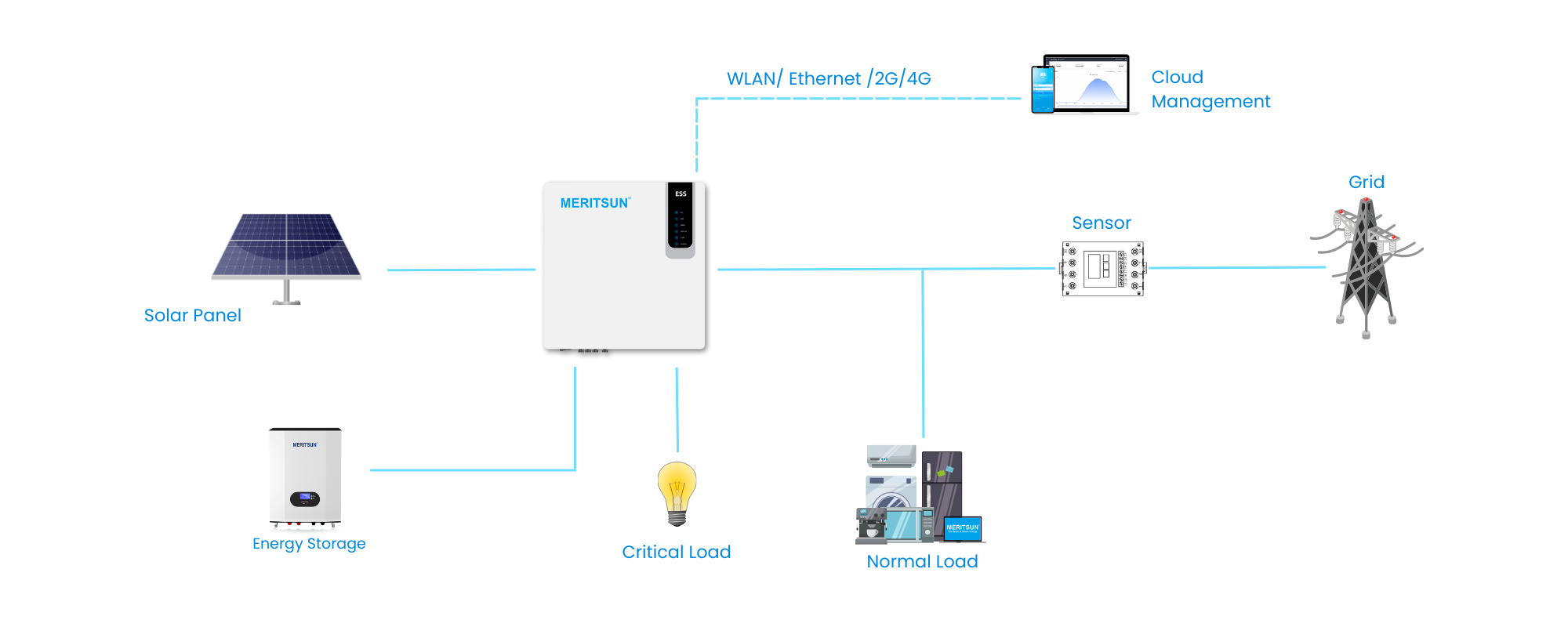

System Schematic

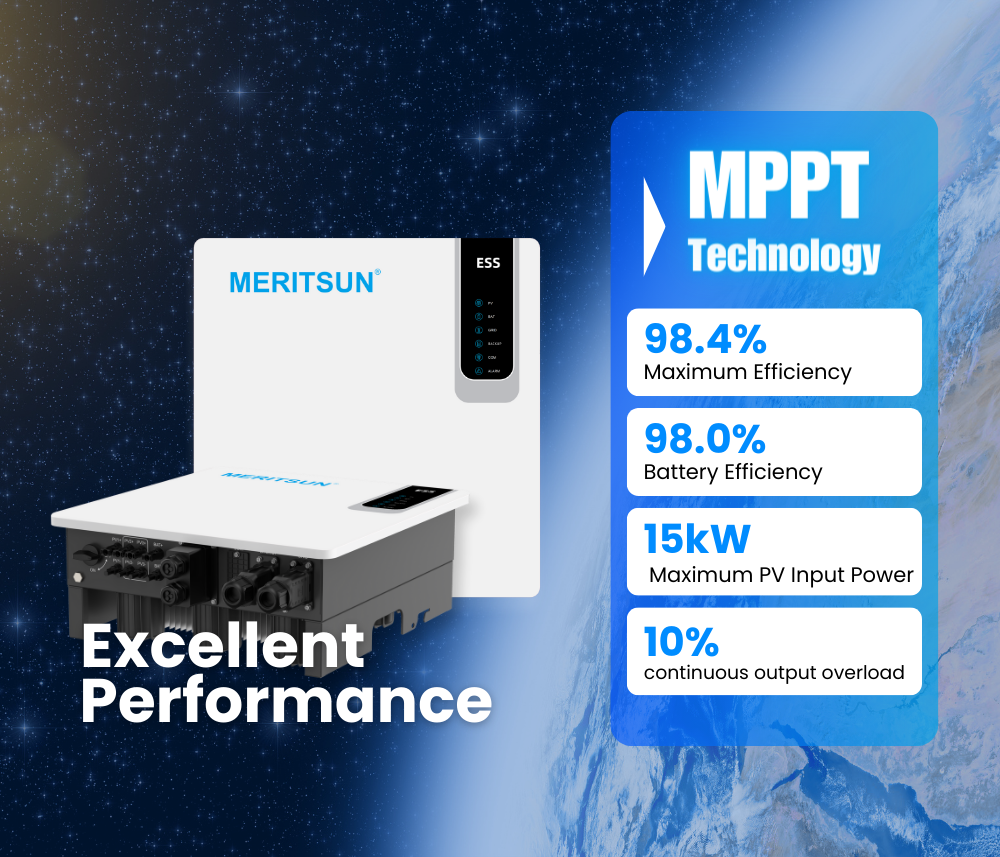

Elevate with Efficiency: Power Upgrade

This high-efficiency inverter system achieves 98.4% overall efficiency and 98% battery efficiency, supporting 15kW PV input power with continuous 10% output overload and 150% unbalanced output. It handles a maximum charge/discharge current of 50A, is compatible with large MPPT currents for high-power solar panels.

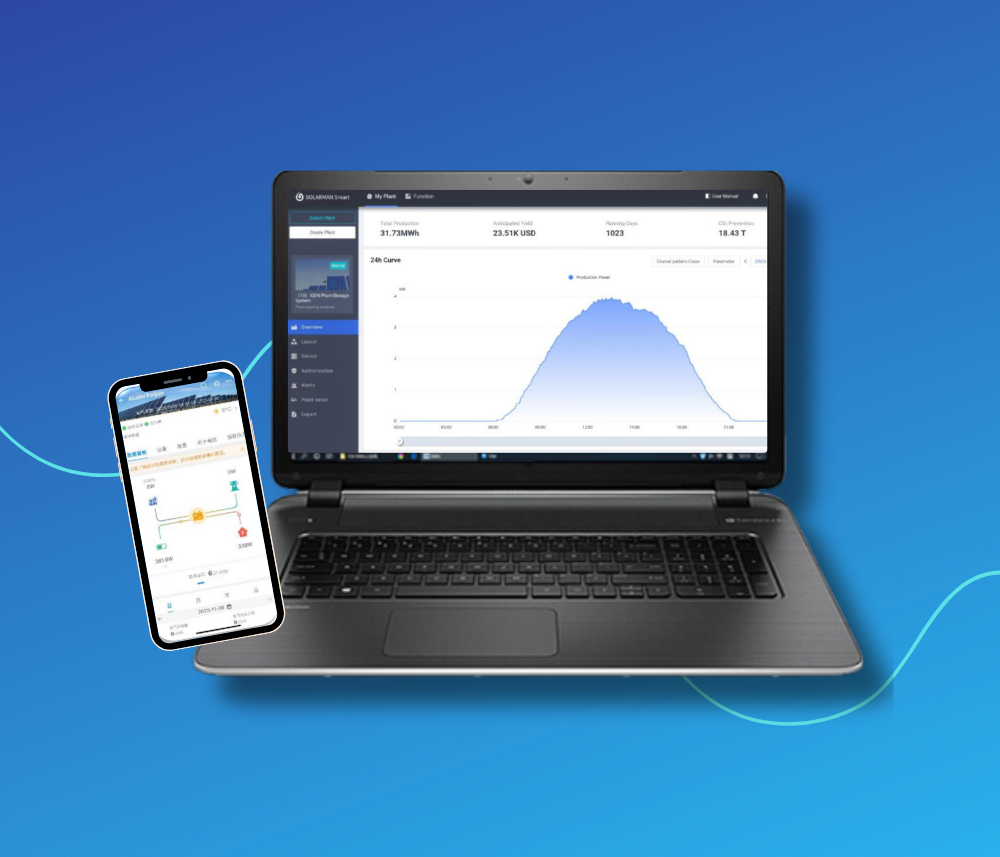

Seamless Energy Management and Remote Control

The inverter provides 24/7 remote monitoring, quick mobile app commissioning, and customizable energy management. It supports remote configuration, battery connectivity, Australian DRM compliance, and export power control. With versatile communication options (RS485, WiFi, GPRS) and reserved ports, it ensures efficient energy management.

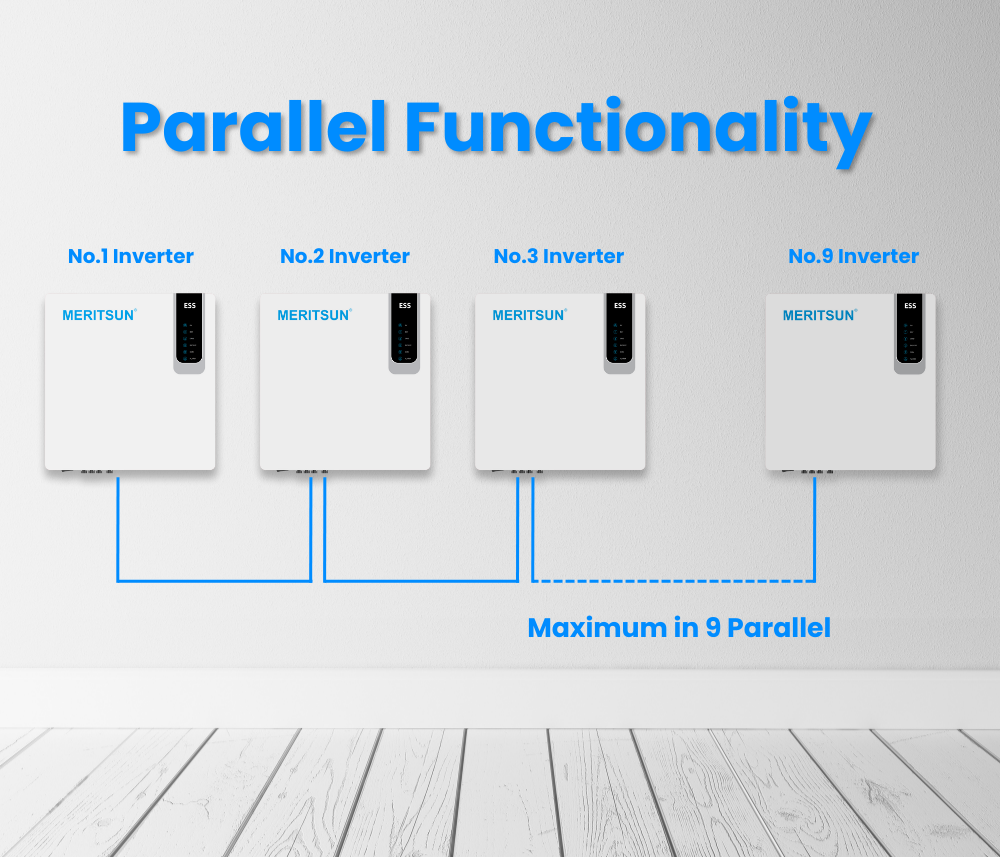

Enhanced Parallel Functionality for Backup Systems

Boasts cutting-edge parallel capabilities, facilitating the seamless integration of up to nine units. This advanced parallel functionality not only amplifies overall capacity but also fortifies reliability, resulting in a scalable and resilient energy solution. This innovation ensures that your backup system operates with heightened efficiency and robustness, meeting the demands of diverse energy scenarios.

PRODUCT SPECIFICATION

Model	Max. PV lnput Power	Max. PV Voltage	Nominal Battery Voltage	Max.charge/ Discharge Current	Max.Charge/ Discharge Power	Nominal AC Output Power	Dimensions (WHD)	Weight
EU3P-5KW	9000W	1000V	250V-600V	25A/25A	9,000W/5,800W	5,000W	530mm550mm212mm	30Kg
EU3P-6KW	9000W	1000V	250V-600V	25A/25A	9,000W/7,000W	6,000W	530mm550mm212mm	30Kg
EU3P-8KW	15,000W	1000V	250V-600V	50A/50A	15,000W/9,100W	8,000W	530mm550mm212mm	32Kg
EU3P-10KW	15,000W	1000V	250V-600V	50A/50A	15,000W/11,300W	10,000W	530mm550mm212mm	32Kg
